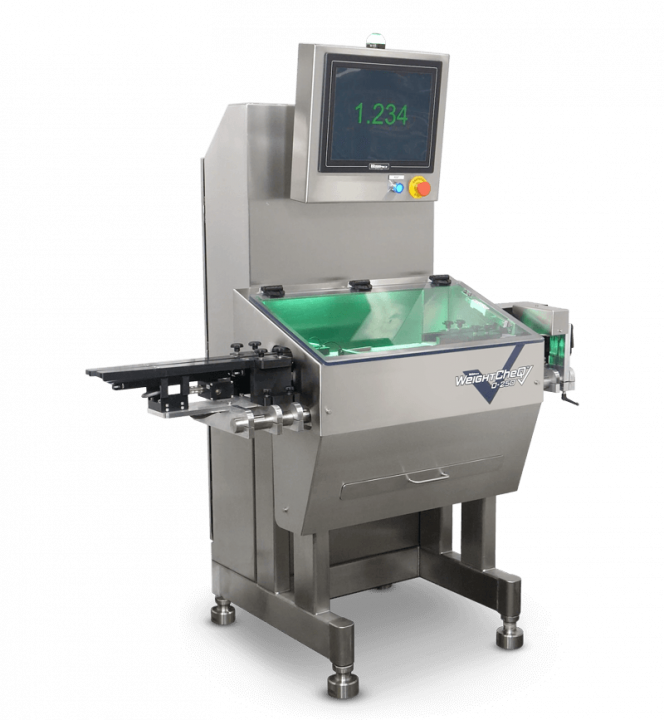

WeightCheq 0-250
High Accuracy Check Weighing
The industry-leading WeightCheQ™ series of check weighers offers speed, accuracy and easy operation. These machines can be used to check the weight of a variety of packages including bags, bottles, cartons and cases and are easily integrated into existing packaging systems where automatic bagging, container filling, flow wrapping and case filling is performed.
| Parts | Description |
|---|---|
| Material of Frame | 304 Stainless steel |
| Weighing range (g) | 0 – 250 |
| Best accuracy (g) | ±0.01 |
Videos
Features
• Electromagnetic force restoration (EMFR) weigh cell
• Complete stainless steel/aluminum construction
• Heavy-duty frame structure
• Heavy-duty CNC machined foot pads
• High precision load cell
• Modular frame design
• Product accumulation drawer
• Food grade belts
• Anti-static Lexan safety guard
• Rejection system
• No changeover parts required
• Multi-color warning light with buzzer
• No compressed air required
What is EMFR?
Electromagnetic force restoration (EMFR) combines electrical and mechanical components. The design of EMFR weigh cells is based on a balance mechanism. It consists of a position indicator, a controller and an electro-magnetic drive (coil and permanent magnet). In its functionality, the Weigh Cell can be compared to a simple beam balance. If a weight is placed on one side of the beam, the opposite side of the weighing beam attempts to move out of the magnet’s magnetic field. The position indicator detects this deviation and the amount of current required for balancing the beam and ensuring that no position change can occur is transmitted through the coil. As the current is proportional to the weight and can be measured via a resistor, it can be converted into a digital signal which is used for further processing.
*Rates subject to package style, type and size
Our WeightCheq 0-250 is suited for all industries as your go to high accuracy check weighing machine:
- Bakery
- Beauty & Cosmetic
- Beverage & Liquid
- Bulk & Food Service
- Cannabis
- Cheese
- Coffee
- Confectionery
- Fruit
- Frozen Food
- Meaty & Poultry
- Pet Food
- Powder
- Snack Food
- Vegetable
and many more industry applications.
-
Specifications
-
Features
• Electromagnetic force restoration (EMFR) weigh cell
• Complete stainless steel/aluminum construction
• Heavy-duty frame structure
• Heavy-duty CNC machined foot pads
• High precision load cell
• Modular frame design
• Product accumulation drawer
• Food grade belts
• Anti-static Lexan safety guard
• Rejection system
• No changeover parts required
• Multi-color warning light with buzzer
• No compressed air requiredWhat is EMFR?
Electromagnetic force restoration (EMFR) combines electrical and mechanical components. The design of EMFR weigh cells is based on a balance mechanism. It consists of a position indicator, a controller and an electro-magnetic drive (coil and permanent magnet). In its functionality, the Weigh Cell can be compared to a simple beam balance. If a weight is placed on one side of the beam, the opposite side of the weighing beam attempts to move out of the magnet’s magnetic field. The position indicator detects this deviation and the amount of current required for balancing the beam and ensuring that no position change can occur is transmitted through the coil. As the current is proportional to the weight and can be measured via a resistor, it can be converted into a digital signal which is used for further processing.
*Rates subject to package style, type and size
-
Ideal Markets
-
Our WeightCheq 0-250 is suited for all industries as your go to high accuracy check weighing machine:
- Bakery
- Beauty & Cosmetic
- Beverage & Liquid
- Bulk & Food Service
- Cannabis
- Cheese
- Coffee
- Confectionery
- Fruit
- Frozen Food
- Meaty & Poultry
- Pet Food
- Powder
- Snack Food
- Vegetable
and many more industry applications.
