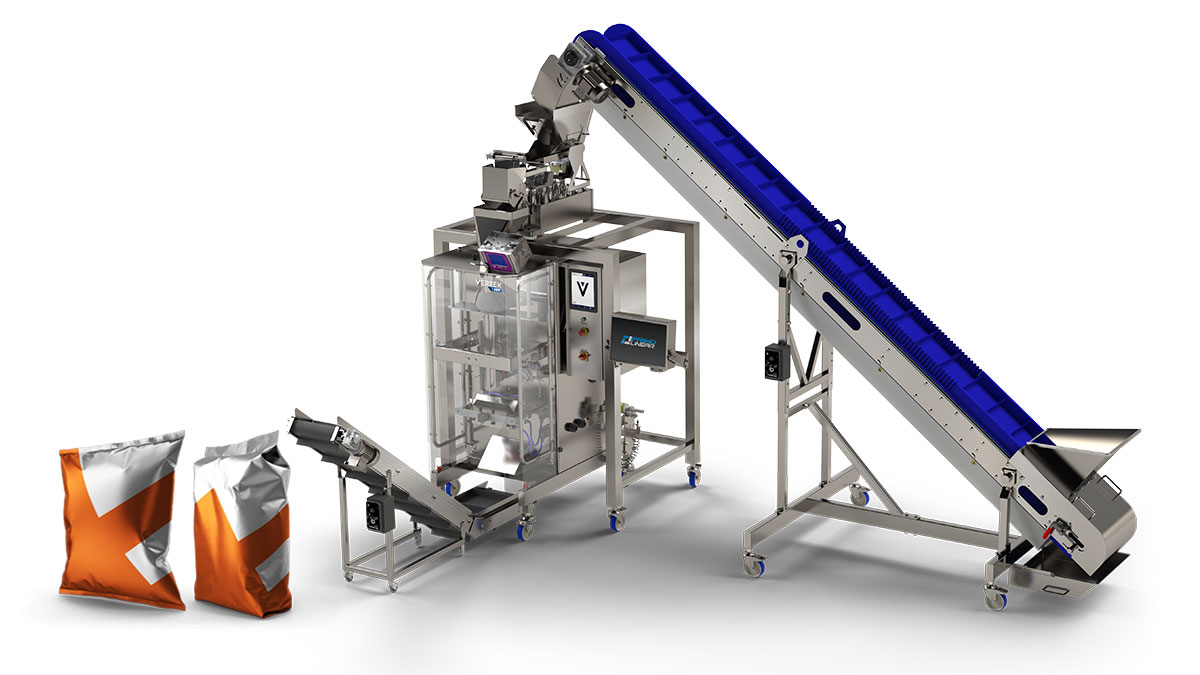

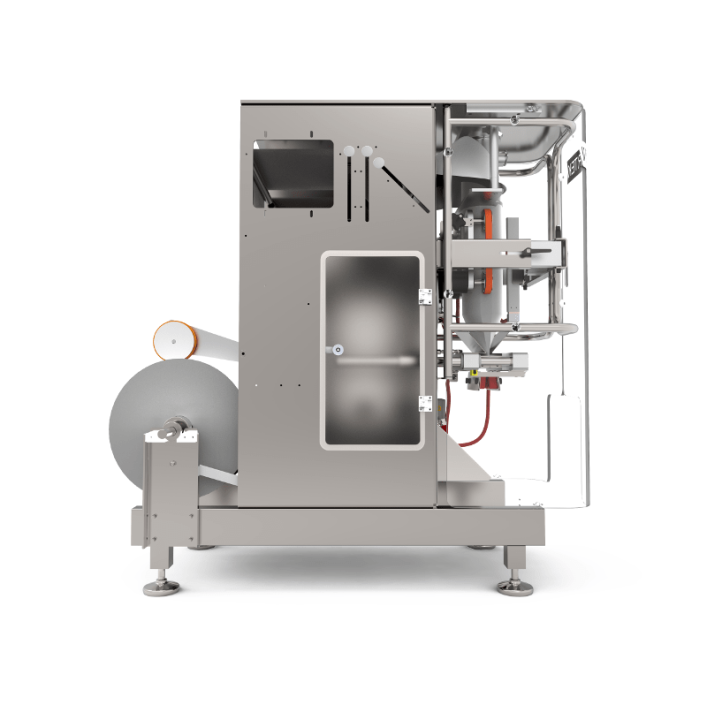

VERTEK 800 & 1200

VERTICAL FORM & SEAL MACHINE

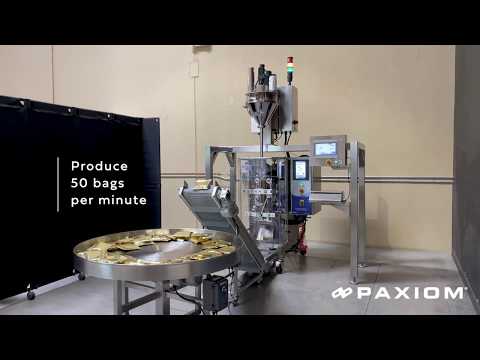

A vertical form fill and seal (VFFS) machine is a versatile piece of equipment used in automated production lines to create, fill, and seal packages. Here’s a breakdown of how it works:

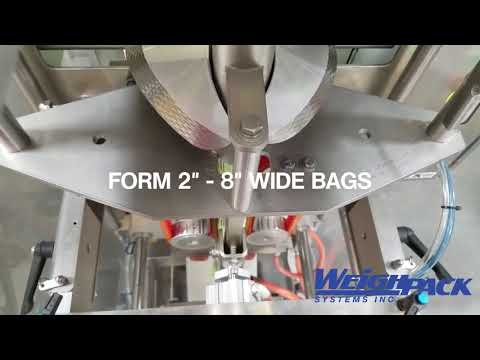

  1. Forming the Bag: The machine unwinds a roll of flat plastic film, which is then guided by a forming tube. This tube shapes the film into a pouch of the desired size.

  2. Filling the Bag: Once the pouch is formed, it’s held open by a clamp. The product is then dispensed into the open pouch using a variety of filling mechanisms depending on the product characteristics. This could be by weight, auger, pump, or volumetric cup depending on the product’s consistency.

  3. Sealing the Bag: After filling, the pouch is heat-sealed closed at the top. Some machines can also create a seal at the bottom of the pouch, depending on the desired style (e.g., pillow pouch vs. doy pouch).

  4. Trimming and Completing the Package: After sealing, the pouch is cut from the remaining film. The finished package can then have additional features added, such as a date code, a tear notch for easy opening, or a hole punch for hanging.

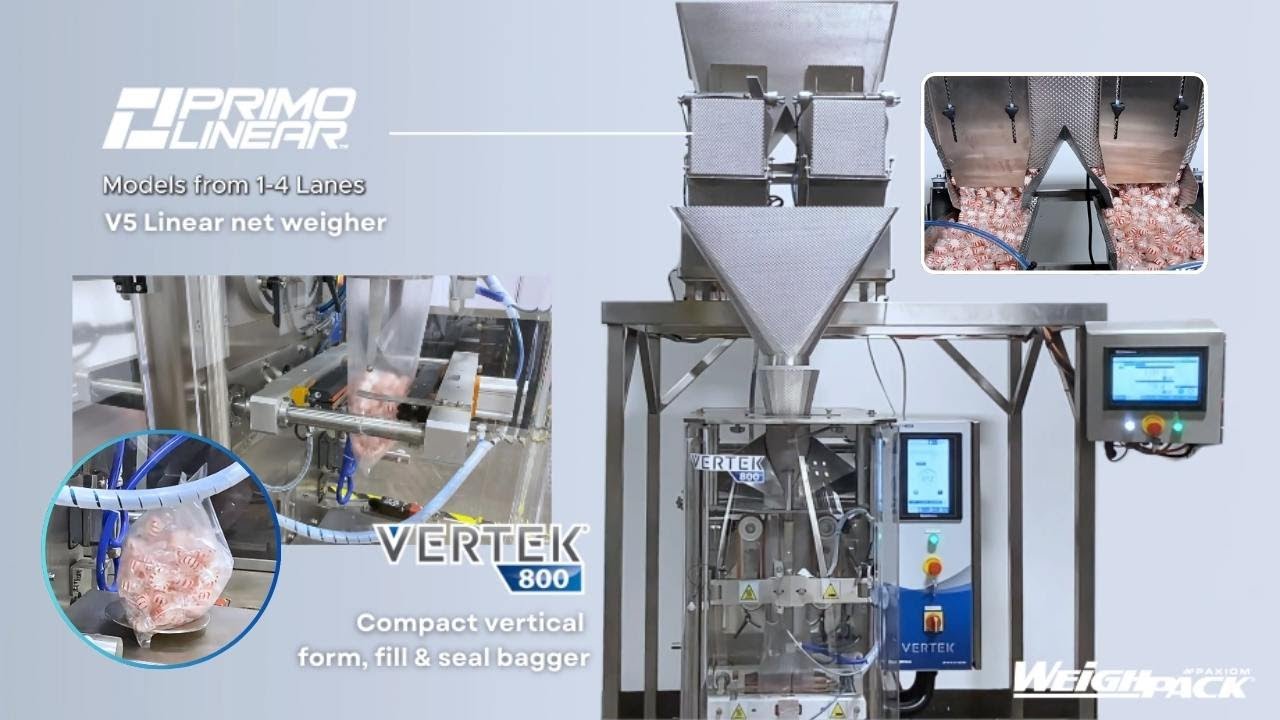

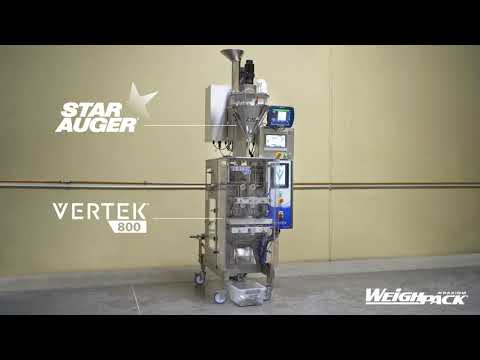

Designed for ease of use, the VerTek 800 and 1200 series can produce pouches up to 12 inches wide in a variety of shapes and sizes including small format, pillow and gusseted pouches.

Engineered with a single piece 304 stainless steel frame; the VerTek is the industry’s easiest bagging machine to clean and offers convenient access for maintenance.

VerTek 800 for pouches up to 8 inches wide (200mm)

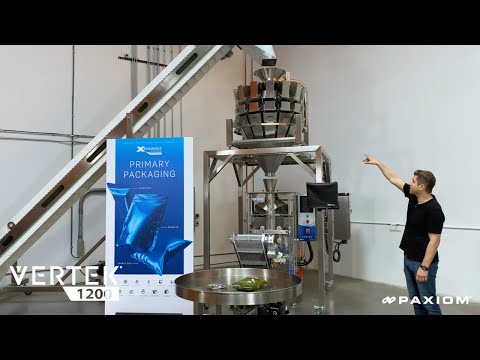

VerTek 1200 for pouches up to 12 inches wide (300mm)

Additional features include a 10-inch color touchscreen; quick disconnect sealing jaws and heating elements, a side access panel for easier maintenance and an integrated encoder.

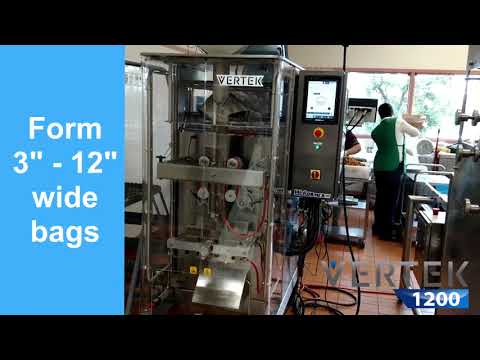

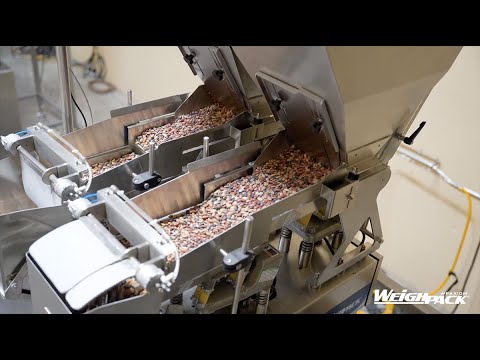

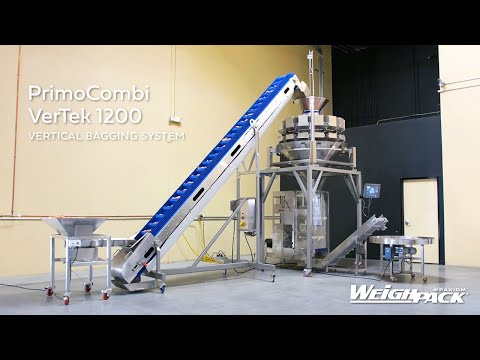

Videos

Features

  • Omron PLC
  • 10.4” color touch screen
  • Single piece 304 stainless steel frame
  • SMC Pneumatics
  • Thompson shafts and bushings
  • HMI integrated temperature control
  • Bag length control using encoder or eye mark
  • Bag deflator—sponge
  • Pneumatic film shaft
  • Lexan safety guard with safety switch
  • Memory based storage of operating functions
  • Adjustable back seal assembly
  • Auto-air regulator, filter, and lubricator

*Rates subject to package style, type and size

We’re here to help

Financing Application

Investment Calculator

Find My Case Packer

Want to see your product run on this machine?

VERTEK 800 & 1200

VERTICAL FORM & SEAL MACHINE

Videos

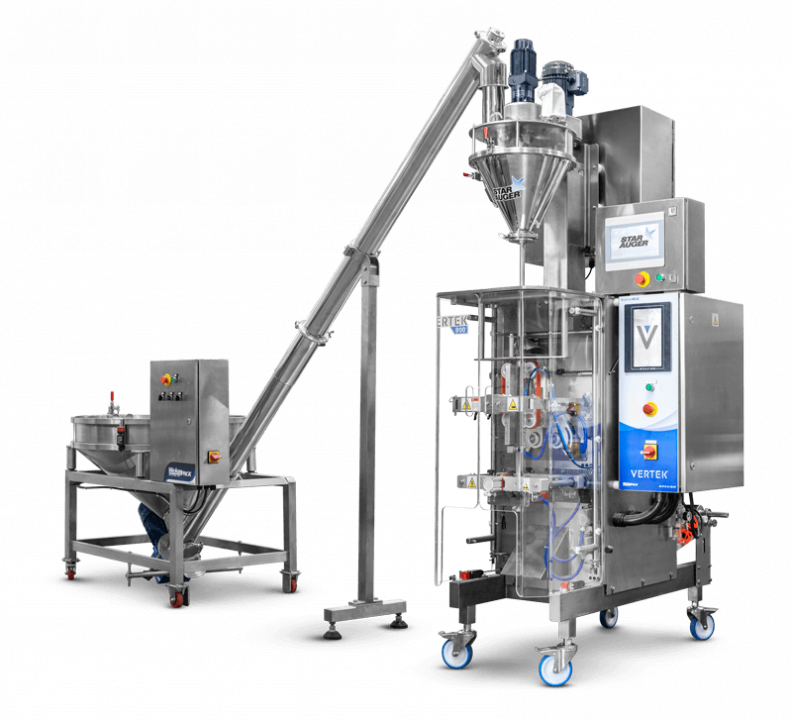

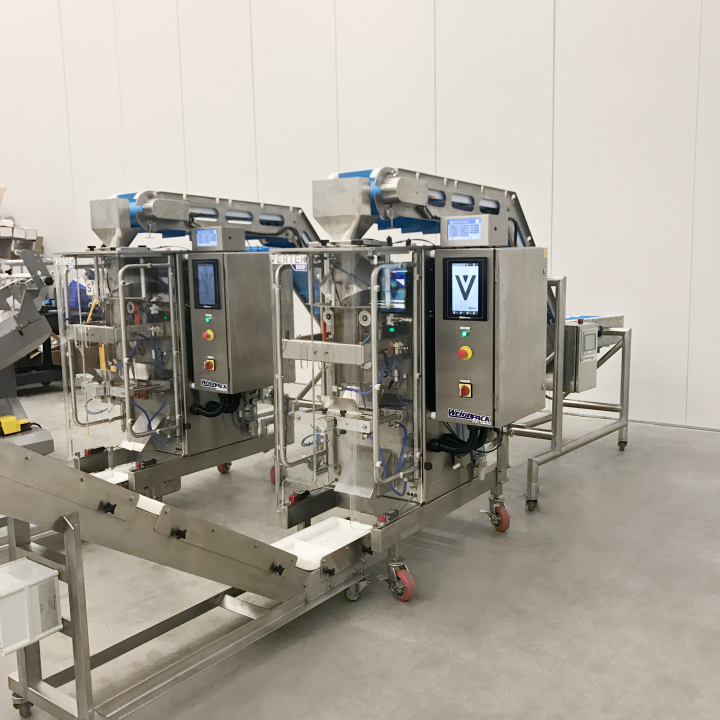

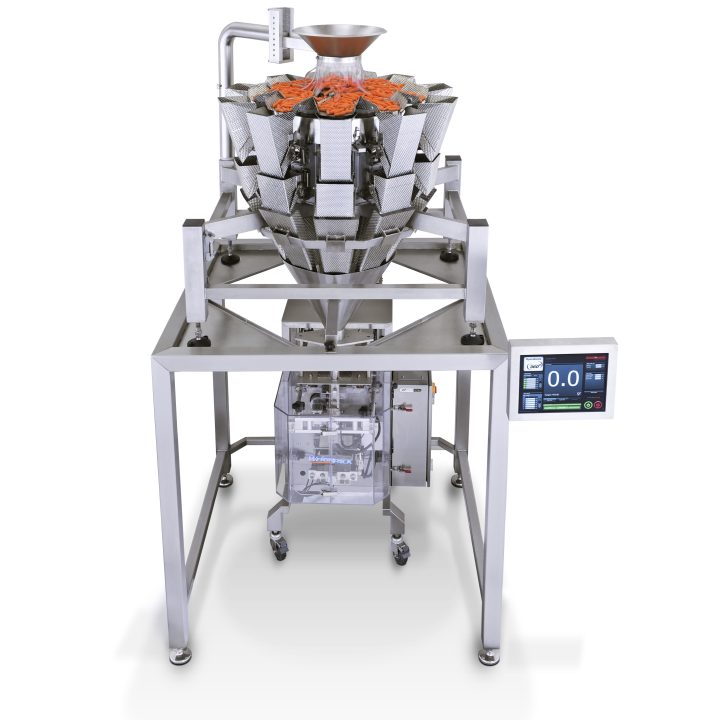

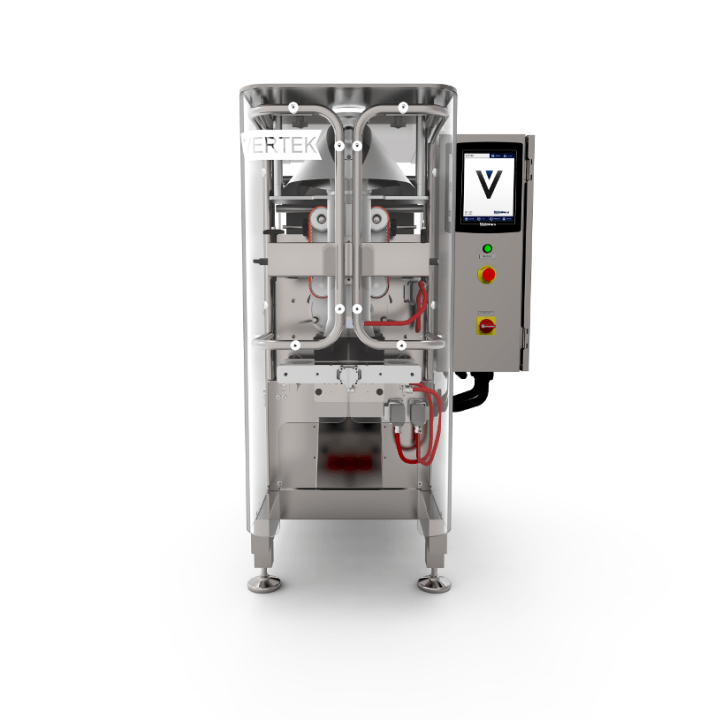

Image Gallery
