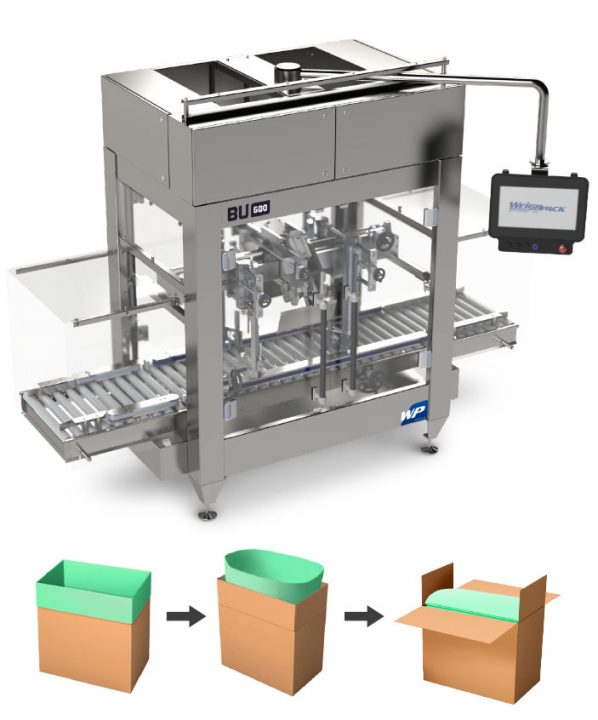

BU 600
Automated Bag Uncuffer
After passing through the BI 600, the bag is then uncuffed from the case and folded over the product prior to your box being conveyed to the next phase of the packaging process. Bag sealing and vacuum assemblies are also available.
This system can be completed by our sister brand, EndFlex, using their Boxxer case erector to form the case prior to bag insertion and their EZ Tape case sealer after bag uncuffing. Then the Z.Zag robotic palletizer can be added to fully automate your bulk bagging line.
Videos
Parts | Description |
---|---|
Box/Tray Length | 300 – 610mm |
Box/Tray Width | 200 – 410mm |
Box/Tray Height | 250 – 650mm |
Recommended Bag Fold-Over | 300 – 610mm |
Film Roll Max Diameter | 510mm |
Film Roll Thickness | 1 – 4mil |
Tubing Roll Film Width | box/tray length + 16 mm |
Tubing Roll Film Gusset | box/tray width + 45 mm |
Features
• 304 stainless steel frame
• SMC pneumatics
• Omron servo motors with absolute encoders
• Hiwin linear bearings
• Case lap holders
• Adjustment indicators
• Bag folding device
• Light stack – Audible with multicolor
*Rates subject to package style, type and size
Our BU 600 is suited for all industries as your go to bag uncuffing machine:
- Bakery
- Beauty & Cosmetic
- Beverage & Liquid
- Bulk & Food Service
- Cannabis
- Cheese
- Coffee
- Confectionery
- Fruit
- Frozen Food
- Meaty & Poultry
- Pet Food
- Powder
- Snack Food
- Vegetable
and many more industry applications.
-
Specifications
-
Parts Description Box/Tray Length 300 – 610mm Box/Tray Width 200 – 410mm Box/Tray Height 250 – 650mm Recommended Bag Fold-Over 300 – 610mm Film Roll Max Diameter 510mm Film Roll Thickness 1 – 4mil Tubing Roll Film Width box/tray length + 16 mm Tubing Roll Film Gusset box/tray width + 45 mm Features
• 304 stainless steel frame
• SMC pneumatics
• Omron servo motors with absolute encoders
• Hiwin linear bearings
• Case lap holders
• Adjustment indicators
• Bag folding device
• Light stack – Audible with multicolor*Rates subject to package style, type and size
-
Ideal Markets
-
Our BU 600 is suited for all industries as your go to bag uncuffing machine:
- Bakery
- Beauty & Cosmetic
- Beverage & Liquid
- Bulk & Food Service
- Cannabis
- Cheese
- Coffee
- Confectionery
- Fruit
- Frozen Food
- Meaty & Poultry
- Pet Food
- Powder
- Snack Food
- Vegetable
and many more industry applications.
